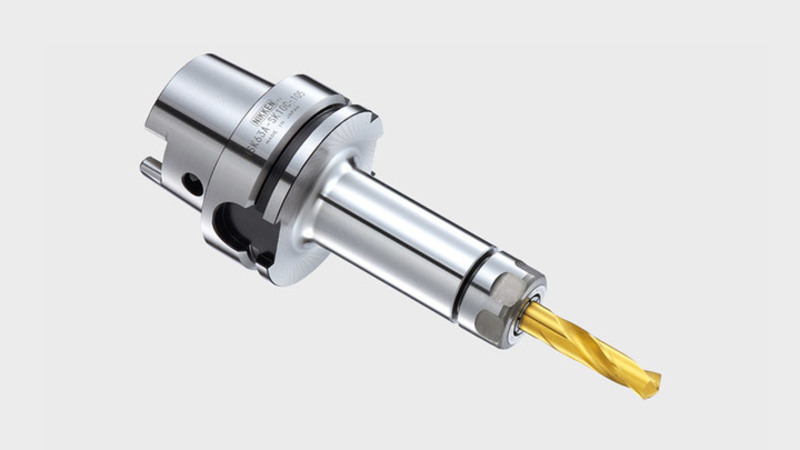

Das NIKKEN Slim Chuck ist unser präzises Spannzangenfutter.
Die Konstruktion besteht aus drei Komponenten - dem Hauptteil/Schaft mit feinem molybdänbeschichtetem geschliffenem Außengewinde und interner Spannzangenbohrung, einer externen Spannmutter mit einer einzigartigen TiN-Lagerscheibe und einem feinen beschichteten geschliffenen Innengewinde und als letzte Komponente einer Präzisionspannzange. Sowohl die Spannzange als auch die Spannzangenbohrung verfügen über einen hochpräzisen 8 Grad-Kegel. Die Lösungen der Konkurrenz (ER-Systeme u.ä.) bauen meist auf einem 16 Grad-Spannzangenkegel auf und bieten damit tatsächlich weniger als die halbe Spannkraft bei gleichzeitig schlechterer Präzision im Vergleich zu unserem Slim Chuck.
Die Bedienung ist kinderleicht. Die Spannzange wird in die Mutter eingestezt, bevor die beiden Teile zusammen auf den Schaft des Halters geschraubt werden. Vor dem Anziehen im Uhrzeigersinn wird das Schneidwerkzeug dann auf der geforderten Länge in die Bohrung der Spannzange eingesteckt. Zunächst wird die Spannmutter von Hand angezogen, um anschließend mit dem passenden Spannschlüssel, am Besten mit Drehmomenteinstellung, auf unser empfohlenes Anzugsmoment zu anzuziehen.
-
Rundlauf 5 µm bei 4 x Durchmesser (3 µm bei Präzisions-Spannzangen)
-
TiN-Lagerscheibe
-
8º - Spannzange
-
Mit Plankontakt an der Spannzange
-
Hochgeschwindigkeitsoptionen bis zu 40.000 U/min verfügbar @ G2.5
-
IKZ-Optionen verfügbar
Das Slim Chuck ist in zahlreichen Durchmessern, Längen und Spindelkegeln erhältlich und kann so für alle Verfahren passend gemacht werden. Die Außenkontur des Slim Chuck Futters ist in zwei Konfigurationen verfügbar: Standard parallel und in konisch zulaufender Form SKT.
Diese beiden Formen ermöglichen eine Vielseitigkeit, die für die meisten Anwendungen und Anforderungen geeignet ist. Der Anwendungsbereich kann noch erweitert werden, wenn man ein Slim Chuck-Futter mit Zylinderschaft in unser MultiLock-Kraftspannfutter einspannt. Hierdurch kann man sehr lange Auskraglängen erreichen.
Das Spannsystem mit 8° Spannzange vom Typ SK wird in mehreren unserer Produkte eingesetzt. Hierbei wird der Typ der Spannmutter unterschieden: Die Standard-Spannmutter hat einen Außensechskant und wird mittels eines Gabelschlüssels angezogen. Die Hochgeschwindigkeits-Spannmutter ist außen rund geschliffen und wird mit Hilfe unseres Rollenschlüssels vom Typ „GH“ angezogen. Im Gegensatz zu unserem Kraftspannfutter Multi-Lock benötigt ein Slim Chuck-Spannfutter immer eine Spannzange zum Spannen des Werkzeugschaftes. Ein Spannen ohne Spannzange ist hier nicht möglich.
Abhängig vom Spindelkegel ist das Slim Chuck in sechs Größen erhältlich:
- SK6 - für Durchmesser zwischen 0,7 mm und 6,0 mm.
- SK10 - für Durchmesser zwischen 1,75 mm und 10,0 mm.
- SK13 - für Durchmesser zwischen 2,75 mm und 13,0 mm.
- SK16 - für Durchmesser zwischen 2,75 mm und 16,0 mm.
- SK20 - für Durchmesser zwischen 3,5 mm und 20,0 mm.
- SK25 - für Durchmesser zwischen 7,5 mm und 25,4 mm.
Bei Slim Chuck können Sie derzeit unter 4 Typen 8 Grad-Spannzangen wählen, um sowohl den Anforderungen zur Genauigkeit als auch zur Kühlmittelkontrolle gerecht zu werden. Diese sind:
- Standard-Spannzange - Beispiel SK16-16 (ø-Toleranz von bis zu -0,5 mm & 5 µm Genauigkeit).
- Präzisions-Spannzange - Beispiel SK16-16P (ø-Toleranz von bis zu -0,5 mm & 3 µm Genauigkeit).
- Fräs-Spannzange - Beispiel SK16-16A (ø-Toleranz max. h8 & 3 µm Genauigkeit).
- NEU Mechanisch versiegelte Kühlmittel-Spannzangen - Beispiel SK16-16AC (Für Schneidwerkzeuge mit Kühlmittelbohrung. ø-Toleranz max. h8 & 3 µm Genauigkeit).
Die Standard-, Präzisions- und Fräs-SK-Spannzangen können außerdem mit unserem „Jet“-System verwendet werden. Abhängig vom Schneidwerkzeug und den Anforderungen kann die Kühlmittelzufuhr mit der passenden optionalen „Jet“-Mutter und Kappe ganz nach Bedarf für Ihr spezielles Verfahren geregelt werden.
Werkzeughalter Gesamtkatalog (DE - 303FD)
(PDF - 43.7 MB)

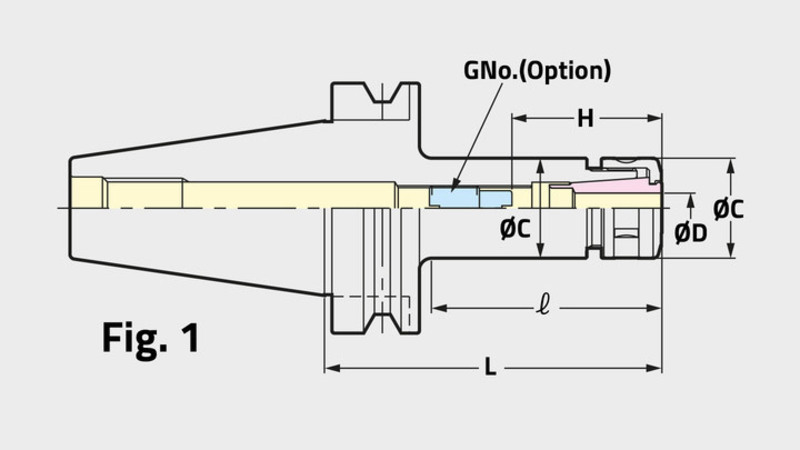

Durchmesser „D“ | CODE | Spanntiefe „H“ | LÄNGE „L“ | Ø SPANNMUTTER „C“ | Spindel | |
---|---|---|---|---|---|---|
BT30-SK10-120 | 1.75-10.0 | SK10 | 30-50 | 120 | 27.5 | BT30 |
BT30-SK10-45 | 1.75-10.0 | SK10 | 30-50 | 45 | 27.5 | BT30 |
BT30-SK10-60 | 1.75-10.0 | SK10 | 30-50 | 60 | 27.5 | BT30 |
BT30-SK10-75 | 1.75-10.0 | SK10 | 30-50 | 75 | 27.5 | BT30 |
BT30-SK10-90 | 1.75-10.0 | SK10 | 30-50 | 90 | 27.5 | BT30 |
BT30-SK13-120 | 2.75-13.0 | SK13 | 31-65 | 120 | 33 | BT30 |
BT30-SK13-60 | 2.75-13.0 | SK13 | 31-50 | 60 | 33 | BT30 |
BT30-SK13-75 | 2.75-13.0 | SK13 | 31-65 | 75 | 33 | BT30 |
BT30-SK13-90 | 2.75-13.0 | SK13 | 31-65 | 90 | 33 | BT30 |
BT30-SK16-120 | 2.75-16.0 | SK16 | 40-70 | 120 | 40 | BT30 |
BT30-SK16-60 | 2.75-16.0 | SK16 | 45-60 | 60 | 40 | BT30 |
BT30-SK16-75 | 2.75-16.0 | SK16 | 45-65 | 75 | 40 | BT30 |
BT30-SK16-90 | 2.75-16.0 | SK16 | 45-65 | 90 | 40 | BT30 |
BT30-SK20-60 | 3.5-20.0 | SK20 | 65-70 | 60 | 48.5 | BT30 |
BT30-SK20-75 | 3.5-20.0 | SK20 | 70-75 | 75 | 48.5 | BT30 |
BT30-SK20-90 | 3.5-20.0 | SK20 | 65-75 | 90 | 48.5 | BT30 |
BT30-SK25-90 | 7.5-25.4 | SK25 | 55-75 | 90 | 55 | BT30 |
BT30-SK6-120 | 0.7-6.0 | SK6 | 21-35 | 120 | 19.5 | BT30 |
BT30-SK6-60 | 0.7-6.0 | SK6 | 21-35 | 60 | 19.5 | BT30 |
BT30-SK6-90 | 0.7-6.0 | SK6 | 21-35 | 90 | 19.5 | BT30 |
BT30-SZF10-90 | 1.75-10.0 | SZF10 | 30-50 | 90 | 27.5 | BT30 |
BT30-SZF16-105 | 2.75-16.0 | SZF16 | 45-65 | 105 | 40 | BT30 |
BT30-SZF6-90 | 0.7-6.0 | SZF6 | 21-35 | 90 | 19.5 | BT30 |
BT40-SK10-120 | 1.75-10.0 | SK10 | 30-50 | 120 | 27.5 | BT40 |
BT40-SK10-150 | 1.75-10.0 | SK10 | 30-50 | 150 | 27.5 | BT40 |
BT40-SK10-180 | 1.75-10.0 | SK10 | 30-50 | 180 | 27.5 | BT40 |
BT40-SK10-200 | 1.75-10.0 | SK10 | 30-50 | 200 | 27.5 | BT40 |
BT40-SK10-250 | 1.75-10.0 | SK10 | 30-50 | 250 | 27.5 | BT40 |
BT40-SK10-60 | 1.75-10.0 | SK10 | 30-50 | 60 | 27.5 | BT40 |
BT40-SK10-75 | 1.75-10.0 | SK10 | 30-50 | 75 | 27.5 | BT40 |
BT40-SK10-90 | 1.75-10.0 | SK10 | 30-50 | 90 | 27.5 | BT40 |
BT40-SK13-120 | 2.75-13.0 | SK13 | 31-65 | 120 | 33 | BT40 |
BT40-SK13-150 | 2.75-13.0 | SK13 | 31-65 | 150 | 33 | BT40 |
BT40-SK13-180 | 2.75-13.0 | SK13 | 31-65 | 180 | 33 | BT40 |
BT40-SK13-200 | 2.75-13.0 | SK13 | 31-65 | 200 | 33 | BT40 |
BT40-SK13-250 | 2.75-13.0 | SK13 | 31-65 | 250 | 33 | BT40 |
BT40-SK13-60 | 2.75-13.0 | SK13 | 31-65 | 60 | 33 | BT40 |
BT40-SK13-75 | 2.75-13.0 | SK13 | 31-65 | 75 | 33 | BT40 |
BT40-SK13-90 | 2.75-13.0 | SK13 | 31-65 | 90 | 33 | BT40 |
BT40-SK16-120 | 2.75-16.0 | SK16 | 45-60 | 120 | 40 | BT40 |
BT40-SK16-150 | 2.75-16.0 | SK16 | 45-60 | 150 | 40 | BT40 |
BT40-SK16-180 | 2.75-16.0 | SK16 | 45-60 | 180 | 40 | BT40 |
BT40-SK16-200 | 2.75-16.0 | SK16 | 45-60 | 200 | 40 | BT40 |
BT40-SK16-250 | 2.75-16.0 | SK16 | 45-60 | 250 | 40 | BT40 |
BT40-SK16-60 | 2.75-16.0 | SK16 | 50-65 | 60 | 40 | BT40 |
BT40-SK16-75 | 2.75-16.0 | SK16 | 40-67 | 75 | 40 | BT40 |
BT40-SK16-90 | 2.75-16.0 | SK16 | 45-60 | 90 | 40 | BT40 |
BT40-SK20-120 | 3.5-20.0 | SK20 | 47-80 | 120 | 48.5 | BT40 |
BT40-SK20-60 | 3.5-20.0 | SK20 | 47-60 | 60 | 48.5 | BT40 |
BT40-SK20-75 | 3.5-20.0 | SK20 | 47-70 | 75 | 48.5 | BT40 |
BT40-SK20-90 | 3.5-20.0 | SK20 | 47-80 | 90 | 48.5 | BT40 |
BT40-SK25-120 | 7.5-25.4 | SK25 | 55-85 | 120 | 55 | BT40 |
BT40-SK25-75 | 7.5-25.4 | SK25 | 55-75 | 75 | 55 | BT40 |
BT40-SK25-90 | 7.5-25.4 | SK25 | 55-75 | 90 | 55 | BT40 |
BT40-SK6-120 | 0.7-6.0 | SK6 | 21-35 | 120 | 19.5 | BT40 |
BT40-SK6-150 | 0.7-6.0 | SK6 | 21-35 | 150 | 19.5 | BT40 |
BT40-SK6-60 | 0.7-6.0 | SK6 | 21-35 | 60 | 19.5 | BT40 |
BT40-SK6-90 | 0.7-6.0 | SK6 | 21-35 | 90 | 19.5 | BT40 |
BT40-SZF10-150 | 1.75-10.0 | SZF10 | 30-50 | 150 | 27.5 | BT40 |
BT40-SZF10-90 | 1.75-10.0 | SZF10 | 30-50 | 90 | 27.5 | BT40 |
BT40-SZF16-150 | 2.75-16.0 | SZF16 | 45-65 | 150 | 40 | BT40 |
BT40-SZF16-90 | 2.75-16.0 | SZF16 | 45-65 | 90 | 40 | BT40 |
BT40-SZF25-120 | 7.5-25.4 | SZF25 | 55-85 | 120 | 55 | BT40 |
BT40-SZF25-150 | 7.5-25.4 | SZF25 | 55-85 | 150 | 55 | BT40 |
BT40-SZF6-150 | 0.7-6.0 | SZF6 | 21-35 | 150 | 19.5 | BT40 |
BT40-SZF6-90 | 0.7-6.0 | SZF6 | 21-35 | 90 | 19.5 | BT40 |
BT50-SK10-105 | 1.75-10.0 | SK10 | 30-50 | 105 | 27.5 | BT50 |
BT50-SK10-135 | 1.75-10.0 | SK10 | 30-50 | 135 | 27.5 | BT50 |
BT50-SK10-165 | 1.75-10.0 | SK10 | 30-50 | 165 | 27.5 | BT50 |
BT50-SK10-200 | 1.75-10.0 | SK10 | 30-50 | 200 | 27.5 | BT50 |
BT50-SK10-225 | 1.75-10.0 | SK10 | 30-50 | 225 | 27.5 | BT50 |
BT50-SK10-250 | 1.75-10.0 | SK10 | 30-50 | 250 | 27.5 | BT50 |
BT50-SK10-300 | 1.75-10.0 | SK10 | 30-50 | 300 | 27.5 | BT50 |
BT50-SK13-105 | 2.75-13.0 | SK13 | 31-65 | 105 | 33 | BT50 |
BT50-SK13-135 | 2.75-13.0 | SK13 | 31-65 | 135 | 33 | BT50 |
BT50-SK13-165 | 2.75-13.0 | SK13 | 31-65 | 165 | 33 | BT50 |
BT50-SK13-200 | 2.75-13.0 | SK13 | 31-65 | 200 | 33 | BT50 |
BT50-SK13-250 | 2.75-13.0 | SK13 | 31-65 | 250 | 33 | BT50 |
BT50-SK13-300 | 2.75-13.0 | SK13 | 31-65 | 300 | 33 | BT50 |
BT50-SK16-105 | 2.75-16.0 | SK16 | 45-70 | 105 | 40 | BT50 |
BT50-SK16-135 | 2.75-16.0 | SK16 | 45-70 | 135 | 40 | BT50 |
BT50-SK16-165 | 2.75-16.0 | SK16 | 45-70 | 165 | 40 | BT50 |
BT50-SK16-200 | 2.75-16.0 | SK16 | 45-70 | 200 | 40 | BT50 |
BT50-SK16-250 | 2.75-16.0 | SK16 | 45-70 | 250 | 40 | BT50 |
BT50-SK16-300 | 2.75-16.0 | SK16 | 45-70 | 300 | 40 | BT50 |
BT50-SK20-105 | 3.5-20.0 | SK20 | 47-80 | 105 | 48.5 | BT50 |
BT50-SK20-135 | 3.5-20.0 | SK20 | 47-80 | 135 | 48.5 | BT50 |
BT50-SK20-165 | 3.5-20.0 | SK20 | 47-80 | 165 | 48.5 | BT50 |
BT50-SK20-250 | 3.5-20.0 | SK20 | 47-80 | 250 | 48.5 | BT50 |
BT50-SK20-300 | 3.5-20.0 | SK20 | 47-80 | 300 | 48.5 | BT50 |
BT50-SK25-105 | 7.5-25.4 | SK25 | 50-85 | 135 | 55 | BT50 |
BT50-SK25-135 | 7.5-25.4 | SK25 | 50-85 | 135 | 55 | BT50 |
BT50-SK25-165 | 7.5-25.4 | SK25 | 50-85 | 165 | 55 | BT50 |
BT50-SK25-200 | 7.5-25.4 | SK25 | 50-85 | 200 | 55 | BT50 |
BT50-SK25-250 | 7.5-25.4 | SK25 | 50-85 | 250 | 55 | BT50 |
BT50-SK25-300 | 7.5-25.4 | SK25 | 50-85 | 300 | 55 | BT50 |
BT50-SK6-135 | 0.7-6.0 | 21-35 | 135 | 19.5 | BT50 | |
BT50-SK6-165 | 0.7-6.0 | 21-35 | 165 | 19.5 | BT50 | |
BT50-SK6-200 | 0.7-6.0 | 21-35 | 200 | 19.5 | BT50 | |
BT50-SZF10-105 | 1.75-10.0 | SZF10 | 30-50 | 105 | 27.5 | BT50 |
BT50-SZF10-165 | 1.75-10.0 | SZF10 | 30-50 | 165 | 27.5 | BT50 |
BT50-SZF16-105 | 2.75-16.0 | SZF16 | 45-65 | 105 | 40 | BT50 |
BT50-SZF16-165 | 2.75-16.0 | SZF16 | 45-65 | 165 | 40 | BT50 |
BT50-SZF25-135 | 7.5-25.4 | SZF25 | 55-85 | 135 | 55 | BT50 |
BT50-SZF25-165 | 7.5-25.4 | SZF25 | 55-85 | 165 | 55 | BT50 |
BT50-SZF6-105 | 0.7-6.0 | SZF6 | 21-35 | 105 | 19.5 | BT50 |
BT50-SZF6-165 | 0.7-6.0 | SZF6 | 21-35 | 165 | 19.5 | BT50 |
HSK100A-SK10C-105 | 1.75-10.0 | SK10C | 33-41 | 105 | 27.5 | HSK100A |
HSK100A-SK10C-120 | 1.75-10.0 | SK10C | 33-41 | 120 | 27.5 | HSK100A |
HSK100A-SK10C-150 | 1.75-10.0 | SK10C | 33-41 | 150 | 27.5 | HSK100A |
HSK100A-SK10C-200 | 1.75-10.0 | SK10C | 33-41 | 200 | 27.5 | HSK100A |
HSK100A-SK13-105 | 2.75-13.0 | SK13 | 63 | 105 | 33 | HSK100A |
HSK100A-SK13C-120 | 2.75-13.0 | SK13C | 39-51 | 120 | 33 | HSK100A |
HSK100A-SK13C-150 | 2.75-13.0 | SK13C | 39-51 | 150 | 33 | HSK100A |
HSK100A-SK13C-200 | 2.75-13.0 | SK13C | 39-51 | 200 | 33 | HSK100A |
HSK100A-SK16-105 | 2.75-16.0 | SK16 | 45-60 | 105 | 40 | HSK100A |
HSK100A-SK16C-120 | 2.75-16.0 | SK16C | 45-52 | 120 | 40 | HSK100A |
HSK100A-SK16C-150 | 2.75-16.0 | SK16C | 45-52 | 150 | 40 | HSK100A |
HSK100A-SK16C-200 | 2.75-16.0 | SK16C | 45-52 | 200 | 40 | HSK100A |
HSK100A-SK20C-120 | 3.5-20.0 | SK20C | 50-55 | 120 | 48.5 | HSK100A |
HSK100A-SK20C-150 | 3.5-20.0 | SK20C | 47-63 | 150 | 48.5 | HSK100A |
HSK100A-SK20C-200 | 3.5-20.0 | SK20C | 47-63 | 200 | 48.5 | HSK100A |
HSK100A-SK25-120 | 7.5-25.4 | SK25 | 55-75 | 120 | 55 | HSK100A |
HSK100A-SK25C-145 | 7.5-25.4 | SK25C | 60-65 | 145 | 55 | HSK100A |
HSK100A-SK6C-105 | 0.7-6.0 | SK6C | 26-31 | 105 | 19.5 | HSK100A |
HSK100A-SZF10C-150 | 1.75-10.0 | SZF10C | 35-41 | 150 | 27.5 | HSK100A |
HSK100A-SZF16C-150 | 2.75-16.0 | SZF16C | 45-57 | 150 | 40 | HSK100A |
HSK100A-SZF25C-150 | 7.5-25.4 | SZF25C | 60-65 | 150 | 55 | HSK100A |
HSK100A-SZF6C-120 | 0.7-6.0 | SZF6C | 26-31 | 120 | 19.5 | HSK100A |
HSK40A-SK10-60 | 1.75-10.0 | SK10 | 40 | 60 | 27.5 | HSK40A |
HSK40A-SK10-75 | 1.75-10.0 | SK10 | 29-36 | 75 | 27.5 | HSK40A |
HSK40A-SK10C-100 | 1.75-10.0 | SK10C | 33-41 | 100 | 27.5 | HSK40A |
HSK40A-SK13-75 | 2.75-13.0 | SK13 | 55 | 75 | 33 | HSK40A |
HSK40A-SK13C-120 | 2.75-13.0 | SK13C | 39-51 | 120 | 33 | HSK40A |
HSK40A-SK16-120 | 2.75-16.0 | SK16 | 45-52 | 120 | 40 | HSK40A |
HSK40A-SK16-80 | 2.75-16.0 | SK16 | 60 | 80 | 40 | HSK40A |
HSK40A-SK6-60 | 0.7-6.0 | SK6 | 40 | 60 | 19.5 | HSK40A |
HSK40A-SK6C-80 | 0.7-6.0 | SK6C | 26-31 | 80 | 19.5 | HSK40A |
HSK40A-SZF10C-105 | 1.75-10.0 | SZF10C | 35-41 | 105 | 27.5 | HSK40A |
HSK40A-SZF16C-120 | 2.75-16.0 | SZF16C | 45-57 | 120 | 40 | HSK40A |
HSK40A-SZF6C-105 | 0.7-6.0 | SZF6C | 26-31 | 105 | 19.5 | HSK40A |
HSK50A-SK10-60 | 1.75-10.0 | SK10 | 35 | 60 | 27.5 | HSK50A |
HSK50A-SK10C-105 | 1.75-10.0 | SK10C | 35-41 | 105 | 27.5 | HSK50A |
HSK50A-SK10C-90 | 1.75-10.0 | SK10C | 35-41 | 90 | 27.5 | HSK50A |
HSK50A-SK13-105 | 2.75-13.0 | SK13 | 31-47 | 105 | 33 | HSK50A |
HSK50A-SK13-70 | 2.75-13.0 | SK13 | 47 | 70 | 33 | HSK50A |
HSK50A-SK13C-120 | 2.75-13.0 | SK13C | 39-51 | 120 | 33 | HSK50A |
HSK50A-SK16-105 | 2.75-16.0 | SK16 | 50-58 | 105 | 40 | HSK50A |
HSK50A-SK16-80 | 2.75-16.0 | SK16 | 52 | 80 | 40 | HSK50A |
HSK50A-SK16C-120 | 2.75-16.0 | SK16C | 45-52 | 120 | 40 | HSK50A |
HSK50A-SK6-60 | 0.7-6.0 | SK6 | 37 | 60 | 19.5 | HSK50A |
HSK50A-SK6C-80 | 0.7-6.0 | SK6C | 26-31 | 80 | 19.5 | HSK50A |
HSK50A-SZF10C-120 | 1.75-10.0 | SZF10C | 35-41 | 120 | 27.5 | HSK50A |
HSK50A-SZF16C-135 | 2.75-16.0 | SZF16C | 45-57 | 135 | 40 | HSK50A |
HSK50A-SZF25C-135 | 7.5-25.4 | SZF25C | 60-65 | 135 | 55 | HSK50A |
HSK50A-SZF6C-120 | 0.7-6.0 | SZF6C | 26-31 | 120 | 19.5 | HSK50A |
HSK63A-SK10-60 | 1.75-10.0 | SK10 | 35 | 60 | 27.5 | HSK63A |
HSK63A-SK10C-105 | 1.75-10.0 | SK10C | 33-41 | 105 | 27.5 | HSK63A |
HSK63A-SK10C-120 | 1.75-10.0 | SK10C | 33-41 | 120 | 27.5 | HSK63A |
HSK63A-SK10C-135 | 1.75-10.0 | SK10C | 33-41 | 135 | 27.5 | HSK63A |
HSK63A-SK10C-150 | 1.75-10.0 | SK10C | 33-41 | 150 | 27.5 | HSK63A |
HSK63A-SK13-105 | 2.75-13.0 | SK13 | 31-47 | 105 | 33 | HSK63A |
HSK63A-SK13-70 | 2.75-13.0 | SK13 | 45 | 70 | 33 | HSK63A |
HSK63A-SK13C-120 | 2.75-13.0 | SK13C | 39-51 | 120 | 33 | HSK63A |
HSK63A-SK13C-150 | 2.75-13.0 | SK13C | 39-51 | 150 | 33 | HSK63A |
HSK63A-SK16-105 | 2.75-16.0 | SK16 | 50-58 | 105 | 40 | HSK63A |
HSK63A-SK16-80 | 2.75-16.0 | SK16 | 52 | 80 | 40 | HSK63A |
HSK63A-SK16C-120 | 2.75-16.0 | SK16C | 45-52 | 120 | 40 | HSK63A |
HSK63A-SK16C-150 | 2.75-16.0 | SK16C | 45-57 | 150 | 40 | HSK63A |
HSK63A-SK20-105 | 3.5-20.0 | SK20 | 50-57 | 105 | 48.5 | HSK63A |
HSK63A-SK20-90 | 3.5-20.0 | SK20 | 59 | 90 | 48.5 | HSK63A |
HSK63A-SK20C-120 | 3.5-20.0 | SK20C | 50-55 | 120 | 48.5 | HSK63A |
HSK63A-SK20C-135 | 3.5-20.0 | SK20C | 50-55 | 135 | 48.5 | HSK63A |
HSK63A-SK25-90 | 7.5-25.4 | SK25 | 63 | 90 | 55 | HSK63A |
HSK63A-SK25C-135 | 7.5-25.4 | SK25C | 63 | 135 | 60-65 | HSK63A |
HSK63A-SK6-60 | 0.7-6.0 | SK6 | 38 | 60 | 19.5 | HSK63A |
HSK63A-SK6C-100 | 0.7-6.0 | SK6C | 26-31 | 100 | 19.5 | HSK63A |
HSK63A-SK6C-120 | 0.7-6.0 | SK6C | 26-31 | 120 | 19.5 | HSK63A |
HSK63A-SK6C-150 | 0.7-6.0 | SK6C | 26-31 | 150 | 19.5 | HSK63A |
HSK63A-SZF10C-105 | 1.75-10.0 | SZF10C | 35-41 | 105 | 27.5 | HSK63A |
HSK63A-SZF10C-150 | 1.75-10.0 | SZF10C | 35-41 | 150 | 27.5 | HSK63A |
HSK63A-SZF16C-150 | 2.75-16.0 | SZF16C | 45-57 | 150 | 40 | HSK63A |
HSK63A-SZF25C-135 | 7.5-25.4 | SZF25C | 60-65 | 135 | 55 | HSK63A |
HSK63A-SZF6C-120 | 0.7-6.0 | SZF6C | 26-31 | 120 | 19.5 | HSK63A |
IT40-SK10-120 | 1.75-10.0 | SK10 | 30-50 | 120 | 27.5 | IT40 |
IT40-SK10-150 | 1.75-10.0 | SK10 | 30-50 | 150 | 27.5 | IT40 |
IT40-SK10-180 | 1.75-10.0 | SK10 | 30-50 | 180 | 27.5 | IT40 |
IT40-SK10-60 | 1.75-10.0 | SK10 | 30-50 | 60 | 27.5 | IT40 |
IT40-SK10-90 | 1.75-10.0 | SK10 | 30-50 | 90 | 27.5 | IT40 |
IT40-SK13-120 | 2.75-13.0 | SK13 | 31-65 | 120 | 33 | IT40 |
IT40-SK13-150 | 2.75-13.0 | SK13 | 31-65 | 150 | 33 | IT40 |
IT40-SK13-180 | 2.75-13.0 | SK13 | 31-65 | 180 | 33 | IT40 |
IT40-SK13-60 | 2.75-13.0 | SK13 | 31-65 | 60 | 33 | IT40 |
IT40-SK13-90 | 2.75-13.0 | SK13 | 31-65 | 90 | 33 | IT40 |
IT40-SK16-120 | 2.75-16.0 | SK16 | 45-70 | 120 | 40 | IT40 |
IT40-SK16-120 | 2.75-16.0 | SK16 | 45-70 | 120 | 40 | IT40 |
IT40-SK16-150 | 2.75-16.0 | SK16 | 45-70 | 150 | 40 | IT40 |
IT40-SK16-180 | 2.75-16.0 | SK16 | 45-70 | 180 | 40 | IT40 |
IT40-SK16-60 | 2.75-16.0 | SK16 | 50-65 | 60 | 40 | IT40 |
IT40-SK16-90 | 2.75-16.0 | SK16 | 45-70 | 90 | 40 | IT40 |
IT40-SK20-120 | 3.5-20.0 | SK20 | 47-80 | 120 | 48.5 | IT40 |
IT40-SK20-90 | 3.5-20.0 | SK20 | 47-80 | 90 | 48.5 | IT40 |
IT40-SK25-120 | 7.5-25.4 | SK25 | 55-75 | 120 | 55 | IT40 |
IT40-SK25-90 | 7.5-25.4 | SK25 | 55-75 | 90 | 55 | IT40 |
IT40-SK6-120 | 0.7-6.0 | SK6 | 21-35 | 120 | 19.5 | IT40 |
IT40-SK6-150 | 0.7-6.0 | SK6 | 21-35 | 150 | 19.5 | IT40 |
IT40-SK6-60 | 0.7-6.0 | SK6 | 21-35 | 60 | 19.5 | IT40 |
IT40-SK6-90 | 0.7-6.0 | SK6 | 21-35 | 90 | 19.5 | IT40 |
IT40-SZF10-120 | 1.75-10.0 | SZF10 | 30-50 | 120 | 27.5 | IT40 |
IT40-SZF10-150 | 1.75-10.0 | SZF10 | 30-50 | 150 | 27.5 | IT40 |
IT40-SZF16-120 | 2.75-16.0 | SZF16 | 45-65 | 120 | 40 | IT40 |
IT40-SZF16-150 | 2.75-16.0 | SZF16 | 45-65 | 150 | 40 | IT40 |
IT40-SZF25-120 | 7.5-25.4 | SZF25 | 55-85 | 120 | 55 | IT40 |
IT40-SZF25-150 | 7.5-25.4 | SZF25 | 55-85 | 150 | 55 | IT40 |
IT40-SZF6-150 | 0.7-6.0 | SZF6 | 21-35 | 150 | 19.5 | IT40 |
IT40-SZF6-90 | 0.7-6.0 | SZF6 | 21-35 | 90 | 19.5 | IT40 |
IT50-SK10-105 | 1.75-10.0 | SK10 | 30-50 | 105 | 27.5 | IT50 |
IT50-SK10-135 | 1.75-10.0 | SK10 | 30-50 | 135 | 27.5 | IT50 |
IT50-SK10-165 | 1.75-10.0 | SK10 | 30-50 | 165 | 27.5 | IT50 |
IT50-SK10-200 | 1.75-10.0 | SK10 | 30-50 | 200 | 27.5 | IT50 |
IT50-SK13-105 | 2.75-13.0 | SK13 | 31-65 | 105 | 33 | IT50 |
IT50-SK13-135 | 2.75-13.0 | SK13 | 31-65 | 135 | 33 | IT50 |
IT50-SK13-165 | 2.75-13.0 | SK13 | 31-65 | 165 | 33 | IT50 |
IT50-SK13-200 | 2.75-13.0 | SK13 | 31-65 | 200 | 33 | IT50 |
IT50-SK16-105 | 2.75-16.0 | SK16 | 40-70 | 105 | 40 | IT50 |
IT50-SK16-135 | 2.75-16.0 | SK16 | 40-70 | 135 | 40 | IT50 |
IT50-SK16-165 | 2.75-16.0 | SK16 | 40-70 | 165 | 40 | IT50 |
IT50-SK16-200 | 2.75-16.0 | SK16 | 40-70 | 200 | 40 | IT50 |
IT50-SK20-105 | 3.5-20.0 | SK20 | 47-80 | 105 | 48.5 | IT50 |
IT50-SK20-135 | 3.5-20.0 | SK20 | 47-80 | 135 | 48.5 | IT50 |
IT50-SK20-165 | 3.5-20.0 | SK20 | 47-80 | 165 | 48.5 | IT50 |
IT50-SK20-200 | 3.5-20.0 | SK20 | 47-80 | 200 | 48.5 | IT50 |
IT50-SK25-105 | 7.5-25.4 | SK25 | 50-85 | 105 | 55 | IT50 |
IT50-SK25-135 | 7.5-25.4 | SK25 | 50-85 | 135 | 55 | IT50 |
IT50-SK25-165 | 7.5-25.4 | SK25 | 50-85 | 165 | 55 | IT50 |
IT50-SK25-200 | 7.5-25.4 | SK25 | 50-85 | 200 | 55 | IT50 |
IT50-SK6-105 | 0.7-6.0 | SK6 | 21-35 | 105 | 19.5 | IT50 |
IT50-SK6-135 | 0.7-6.0 | SK6 | 21-35 | 135 | 19.5 | IT50 |
IT50-SK6-165 | 0.7-6.0 | SK6 | 21-35 | 165 | 19.5 | IT50 |
IT50-SK6-200 | 0.7-6.0 | SK6 | 21-35 | 200 | 19.5 | IT50 |
IT50-SZF10-105 | 1.75-10.0 | SZF10 | 30-50 | 105 | 27.5 | IT50 |
IT50-SZF10-165 | 1.75-10.0 | SZF10 | 30-50 | 165 | 27.5 | IT50 |
IT50-SZF16-105 | 2.75-16.0 | SZF16 | 45-65 | 105 | 40 | IT50 |
IT50-SZF16-165 | 2.75-16.0 | SZF16 | 45-65 | 165 | 40 | IT50 |
IT50-SZF25-120 | 7.5-25.4 | SZF25 | 55-85 | 120 | 55 | IT50 |
IT50-SZF25-165 | 7.5-25.4 | SZF25 | 55-85 | 165 | 55 | IT50 |
IT50-SZF6-105 | 0.7-6.0 | SZF6 | 21-35 | 105 | 19.5 | IT50 |
IT50-SZF6-165 | 0.7-6.0 | SZF6 | 21-35 | 165 | 19.5 | IT50 |
MBT40-SKT10C-120 | 1.75-10.0 | SKT10C | 35-41 | 120 | 27.5 | MBT40 |
MBT40-SKT10C-150 | 1.75-10.0 | SKT10C | 35-41 | 150 | 27.5 | MBT40 |
MBT40-SKT10C-90 | 1.75-10.0 | SKT10C | 35-41 | 90 | 27.5 | MBT40 |
MBT40-SKT13C-120 | 2.75-13.0 | SKT13C | 39-51 | 120 | 33 | MBT40 |
MBT40-SKT13C-150 | 2.75-13.0 | SKT13C | 39-51 | 150 | 33 | MBT40 |
MBT40-SKT13C-90 | 2.75-13.0 | SKT13C | 39-51 | 90 | 33 | MBT40 |
MBT40-SKT16C-120 | 2.75-16.0 | SKT16C | 45-57 | 120 | 40 | MBT40 |
MBT40-SKT16C-150 | 2.75-16.0 | SKT16C | 45-57 | 150 | 40 | MBT40 |
MBT40-SKT16C-90 | 2.75-16.0 | SKT16C | 45-57 | 90 | 40 | MBT40 |
MBT40-SKT20C-120 | 3.5-20.0 | SKT20C | 47-63 | 120 | 48.5 | MBT40 |
MBT40-SKT20C-90 | 3.5-20.0 | SKT20C | 47-63 | 90 | 48.5 | MBT40 |
MBT40-SKT25C-120 | 7.5-25.4 | SKT25C | 60-65 | 120 | 55 | MBT40 |
MBT40-SKT25C-90 | 7.5-25.4 | SKT25C | 60-65 | 90 | 55 | MBT40 |
MBT40-SKT6C-120 | 0.7-6.0 | SKT6C | 26-31 | 120 | 19.5 | MBT40 |
MBT40-SKT6C-90 | 0.7-6.0 | MBT40 | 26-31 | 90 | 19.5 | MBT40 |
MBT40-SZF10C-150 | 1.75-10.0 | SZF10C | 30-50 | 150 | 27.5 | MBT40 |
MBT40-SZF10C-90 | 1.75-10.0 | SZF10C | 30-50 | 90 | 27.5 | MBT40 |
MBT40-SZF16C-150 | 2.75-16.0 | SZF16C | 45-65 | 150 | 40 | MBT40 |
MBT40-SZF16C-90 | 2.75-16.0 | SZF16C | 45-65 | 90 | 40 | MBT40 |
MBT40-SZF25C-120 | 7.5-25.4 | SZF25C | 55-85 | 120 | 55 | MBT40 |
MBT40-SZF25C-150 | 7.5-25.4 | SZF25C | 55-85 | 150 | 55 | MBT40 |
MBT40-SZF6C-150 | 0.7-6.0 | SZF6C | 21-35 | 150 | 19.5 | MBT40 |
MBT40-SZF6C-90 | 0.7-6.0 | SZF6C | 21-35 | 90 | 19.5 | MBT40 |
MBT50-SKT10C-105 | 1.75-10.0 | SKT10C | 35-41 | 105 | 27.5 | MBT50 |
MBT50-SKT10C-165 | 1.75-10.0 | SKT10C | 35-41 | 165 | 27.5 | MBT50 |
MBT50-SKT13C-105 | 2.75-13.0 | SKT13C | 39-51 | 105 | 33 | MBT50 |
MBT50-SKT13C-165 | 2.75-13.0 | SKT13C | 39-51 | 165 | 33 | MBT50 |
MBT50-SKT16C-105 | 2.75-16.0 | SKT16C | 45-57 | 105 | 40 | MBT50 |
MBT50-SKT16C-165 | 2.75-16.0 | SKT16C | 45-57 | 165 | 40 | MBT50 |
MBT50-SKT20C-105 | 3.5-20.0 | SKT20C | 47-63 | 105 | 48.5 | MBT50 |
MBT50-SKT20C-165 | 3.5-20.0 | SKT20C | 47-63 | 165 | 48.5 | MBT50 |
MBT50-SKT20C-165 | 3.5-20.0 | SKT20C | 47-63 | 105 | 48.5 | MBT50 |
MBT50-SKT25C-105 | 7.5-25.4 | SKT25C | 60-65 | 105 | 55 | MBT50 |
MBT50-SKT25C-165 | 7.5-25.4 | SKT25C | 60-65 | 165 | 55 | MBT50 |
MBT50-SKT6C-105 | 0.7-6.0 | SKT6C | 26-31 | 105 | 19.5 | MBT50 |
MBT50-SKT6C-165 | 0.7-6.0 | SKT6C | 26-31 | 165 | 19.5 | MBT50 |
MBT50-SZF10C-105 | 1.75-10.0 | SZF10C | 30-50 | 105 | 27.5 | MBT50 |
MBT50-SZF10C-165 | 1.75-10.0 | SZF10C | 30-50 | 165 | 27.5 | MBT50 |
MBT50-SZF16C-105 | 2.75-16.0 | SZF16C | 45-65 | 105 | 40 | MBT50 |
MBT50-SZF16C-165 | 2.75-16.0 | SZF16C | 45-65 | 165 | 40 | MBT50 |
MBT50-SZF25C-135 | 7.5-25.4 | SZF25C | 55-85 | 135 | 55 | MBT50 |
MBT50-SZF25C-165 | 7.5-25.4 | SZF25C | 55-85 | 165 | 55 | MBT50 |
MBT50-SZF25C-165 | 7.5-25.4 | SZF25C | 55-85 | 165 | 55 | MBT50 |
MBT50-SZF6C-105 | 0.7-6.0 | SZF6C | 21-35 | 105 | 19.5 | MBT50 |
MBT50-SZF6C-165 | 0.7-6.0 | SZF6C | 21-35 | 165 | 19.5 | MBT50 |
MIT40-SKT10C-120 | 1.75-10.0 | SKT10C | 35-41 | 120 | 27.5 | MIT40 |
MIT40-SKT10C-150 | 1.75-10.0 | SKT10C | 35-41 | 150 | 27.5 | MIT40 |
MIT40-SKT10C-90 | 1.75-10.0 | SKT10C | 35-41 | 90 | 27.5 | MIT40 |
MIT40-SKT13C-120 | 2.75-13.0 | SKT13C | 39-51 | 120 | 33 | MIT40 |
MIT40-SKT13C-150 | 2.75-13.0 | SKT13C | 39-51 | 150 | 33 | MIT40 |
MIT40-SKT13C-90 | 2.75-13.0 | SKT13C | 39-51 | 90 | 33 | MIT40 |
MIT40-SKT16C-120 | 2.75-16.0 | SKT16C | 45-57 | 120 | 40 | MIT40 |
MIT40-SKT16C-150 | 2.75-16.0 | SKT16C | 45-57 | 150 | 40 | MIT40 |
MIT40-SKT16C-90 | 2.75-16.0 | SKT16C | 45-57 | 90 | 40 | MIT40 |
MIT40-SKT20C-120 | 4.0-20.0 | SKT20C | 47-63 | 120 | 48.5 | MIT40 |
MIT40-SKT20C-90 | 4.0-20.0 | SKT20C | 47-63 | 90 | 48.5 | MIT40 |
MIT40-SKT25C-120 | 8.0-25.4 | SKT25C | 60-65 | 120 | 55 | MIT40 |
MIT40-SKT25C-90 | 8.0-25.4 | SKT25C | 60-65 | 90 | 55 | MIT40 |
MIT40-SKT6C-120 | 0.7-6.0 | SKT6C | 26-31 | 120 | 19.5 | MIT40 |
MIT40-SKT6C-90 | 0.7-6.0 | SKT6C | 26-31 | 90 | 19.5 | MIT40 |
MIT50-SKT10C-105 | 1.75-10.0 | SKT10C | 35-41 | 105 | 27.5 | MIT50 |
MIT50-SKT10C-165 | 1.75-10.0 | SKT10C | 35-41 | 165 | 27.5 | MIT50 |
MIT50-SKT13C-105 | 2.75-13.0 | SKT13C | 39-51 | 105 | 33 | MIT50 |
MIT50-SKT13C-165 | 2.75-13.0 | SKT13C | 39-51 | 165 | 33 | MIT50 |
MIT50-SKT16C-105 | 2.75-16.0 | SKT16C | 45-57 | 105 | 40 | MIT50 |
MIT50-SKT16C-165 | 2.75-16.0 | SKT16C | 45-57 | 165 | 40 | MIT50 |
MIT50-SKT20C-105 | 4.0-20.0 | SKT20C | 47-63 | 105 | 48.5 | MIT50 |
MIT50-SKT20C-165 | 4.0-20.0 | SKT20C | 47-63 | 165 | 48.5 | MIT50 |
MIT50-SKT25C-120 | 8.0-25.4 | SKT25C | 60-70 | 120 | 55 | MIT50 |
MIT50-SKT25C-165 | 8.0-25.4 | SKT25C | 60-70 | 165 | 55 | MIT50 |
MIT50-SKT6C-105 | 0.7-6.0 | SKT6C | 26-31 | 105 | 19.5 | MIT50 |
MIT50-SKT6C-165 | 0.7-6.0 | SKT6C | 26-31 | 165 | 19.5 | MIT50 |
NBT30-SK10C-120 | 1.75-10.0 | SK10C | 33-41 | 120 | 27.5 | NBT30 |
NBT30-SK10C-45 | 1.75-10.0 | SK10C | 33-41 | 45 | 27.5 | NBT30 |
NBT30-SK10C-60 | 1.75-10.0 | SK10C | 33-41 | 60 | 27.5 | NBT30 |
NBT30-SK10C-75 | 1.75-10.0 | SK10C | 33-41 | 75 | 27.5 | NBT30 |
NBT30-SK10C-90 | 1.75-10.0 | SK10C | 33-41 | 90 | 27.5 | NBT30 |
NBT30-SK13C-120 | 2.75-13.0 | SK13C | 39-51 | 120 | 33 | NBT30 |
NBT30-SK13C-60 | 2.75-13.0 | SK13C | 39-51 | 60 | 33 | NBT30 |
NBT30-SK13C-75 | 2.75-13.0 | SK13C | 39-51 | 75 | 33 | NBT30 |
NBT30-SK13C-90 | 2.75-13.0 | SK13C | 39-51 | 90 | 33 | NBT30 |
NBT30-SK16C-120 | 2.75-16.0 | SK16C | 45-57 | 120 | 40 | NBT30 |
NBT30-SK16C-60 | 2.75-16.0 | SK16C | 47-52 | 60 | 40 | NBT30 |
NBT30-SK16C-75 | 2.75-16.0 | SK16C | 45-52 | 75 | 40 | NBT30 |
NBT30-SK16C-90 | 2.75-16.0 | SK16C | 45-57 | 90 | 40 | NBT30 |
NBT30-SK20-60 | 3.5-20.0 | SK20 | 65-70 | 60 | 48.5 | NBT30 |
NBT30-SK20C-75 | 3.5-20.0 | SK20C | 55-55 | 75 | 48.5 | NBT30 |
NBT30-SK20C-90 | 3.5-20.0 | SK20C | 47-63 | 90 | 48.5 | NBT30 |
NBT30-SK20C-90 | 3.5-20.0 | SK20C | 47-63 | 90 | 48.5 | NBT30 |
NBT30-SK25-90 | 7.5-25.4 | SK25 | 55-75 | 90 | 55 | NBT30 |
NBT30-SK6C-120 | 0.7-6.0 | SK6C | 26-31 | 120 | 19.5 | NBT30 |
NBT30-SK6C-60 | 0.7-6.0 | SK6C | 26-31 | 60 | 19.5 | NBT30 |
NBT30-SK6C-90 | 0.7-6.0 | SK6C | 26-31 | 90 | 19.5 | NBT30 |
NBT30-SZF10C-90 | 1.75-10.0 | SZF10C | 30-50 | 90 | 27.5 | NBT30 |
NBT30-SZF16C-105 | 2.75-16.0 | SZF16C | 45-65 | 105 | 40 | NBT30 |
NBT30-SZF6C-90 | 0.7-6.0 | SZF6C | 21-35 | 90 | 19.5 | NBT30 |
NBT40-SK10C-150 | 1.75-10.0 | SK10C | 33-41 | 150 | 27.5 | NBT40 |
NBT40-SK10C-180 | 1.75-10.0 | SK10C | 33-41 | 180 | 27.5 | NBT40 |
NBT40-SK10C-200 | 1.75-10.0 | SK10C | 33-41 | 200 | 27.5 | NBT40 |
NBT40-SK10C-250 | 1.75-10.0 | SK10C | 33-41 | 250 | 27.5 | NBT40 |
NBT40-SK10C-60 | 1.75-10.0 | SK10C | 33-41 | 60 | 27.5 | NBT40 |
NBT40-SK10C-75 | 1.75-10.0 | SK10C | 33-41 | 75 | 27.5 | NBT40 |
NBT40-SK10C-90 | 1.75-10.0 | SK10C | 33-41 | 90 | 27.5 | NBT40 |
NBT40-SK10C-90 | 1.75-10.0 | SK10C | 33-41 | 90 | 27.5 | NBT40 |
NBT40-SK13C-120 | 2.75-13.0 | SK13C | 39-51 | 120 | 33 | NBT40 |
NBT40-SK13C-150 | 2.75-13.0 | SK13C | 39-51 | 150 | 33 | NBT40 |
NBT40-SK13C-180 | 2.75-13.0 | SK13C | 39-51 | 180 | 33 | NBT40 |
NBT40-SK13C-200 | 2.75-13.0 | SK13C | 39-51 | 200 | 33 | NBT40 |
NBT40-SK13C-250 | 2.75-13.0 | SK13C | 39-51 | 250 | 33 | NBT40 |
NBT40-SK13C-60 | 2.75-13.0 | SK13C | 39-51 | 60 | 33 | NBT40 |
NBT40-SK13C-75 | 2.75-13.0 | SK13C | 39-51 | 75 | 33 | NBT40 |
NBT40-SK13C-90 | 2.75-13.0 | SK13C | 39-51 | 90 | 33 | NBT40 |
NBT40-SK16C-120 | 2.75-16.0 | SK16C | 45-57 | 120 | 40 | NBT40 |
NBT40-SK16C-150 | 2.75-16.0 | SK16C | 45-57 | 150 | 40 | NBT40 |
NBT40-SK16C-180 | 2.75-16.0 | SK16C | 45-57 | 180 | 40 | NBT40 |
NBT40-SK16C-200 | 2.75-16.0 | SK16C | 45-57 | 200 | 40 | NBT40 |
NBT40-SK16C-250 | 2.75-16.0 | SK16C | 45-57 | 250 | 40 | NBT40 |
NBT40-SK16C-60 | 2.75-16.0 | SK16C | 45-52 | 60 | 40 | NBT40 |
NBT40-SK16C-75 | 2.75-16.0 | SK16C | 45-57 | 75 | 40 | NBT40 |
NBT40-SK16C-90 | 2.75-16.0 | SK16C | 45-57 | 90 | 40 | NBT40 |
NBT40-SK20C-120 | 3.5-20.0 | SK20C | 47-63 | 120 | 48.5 | NBT40 |
NBT40-SK20C-60 | 3.5-20.0 | SK20C | 57-63 | 60 | 48.5 | NBT40 |
NBT40-SK20C-75 | 3.5-20.0 | SK20C | 47-63 | 75 | 48.5 | NBT40 |
NBT40-SK20C-90 | 3.5-20.0 | SK20C | 47-63 | 90 | 48.5 | NBT40 |
NBT40-SK25C-120 | 7.5-25.4 | SK25C | 60-70 | 120 | 55 | NBT40 |
NBT40-SK25C-75 | 7.5-25.4 | SK25C | 60-65 | 75 | 55 | NBT40 |
NBT40-SK25C-90 | 7.5-25.4 | SK25C | 60-65 | 90 | 55 | NBT40 |
NBT40-SK6C-120 | 0.7-6.0 | SK6C | 26-31 | 120 | 19.5 | NBT40 |
NBT40-SK6C-150 | 0.7-6.0 | SK6C | 26-31 | 150 | 19.5 | NBT40 |
NBT40-SK6C-60 | 0.7-6.0 | SK6C | 26-31 | 60 | 19.5 | NBT40 |
NBT40-SK6C-90 | 0.7-6.0 | SK6C | 26-31 | 90 | 19.5 | NBT40 |
NBT40-SZF10C-150 | 1.75-10.0 | SZF10C | 30-50 | 150 | 27.5 | NBT40 |
NBT40-SZF10C-90 | 1.75-10.0 | SZF10C | 30-50 | 90 | 27.5 | NBT40 |
NBT40-SZF16C-150 | 2.75-16.0 | SZF16C | 45-65 | 150 | 40 | NBT40 |
NBT40-SZF16C-90 | 2.75-16.0 | SZF16C | 45-65 | 90 | 40 | NBT40 |
NBT40-SZF25C-120 | 7.5-25.4 | SZF25C | 55-85 | 120 | 55 | NBT40 |
NBT40-SZF25C-150 | 7.5-25.4 | SZF25C | 55-85 | 150 | 55 | NBT40 |
NBT40-SZF6C-150 | 0.7-6.0 | SZF6C | 21-35 | 150 | 19.5 | NBT40 |
NBT40-SZF6C-90 | 0.7-6.0 | SZF6C | 21-35 | 90 | 19.5 | NBT40 |
NBT50-SK10C-105 | 1.75-10.0 | SK10C | 33-41 | 105 | 27.5 | NBT50 |
NBT50-SK10C-135 | 1.75-10.0 | SK10C | 33-41 | 135 | 27.5 | NBT50 |
NBT50-SK10C-165 | 1.75-10.0 | SK10C | 33-41 | 165 | 27.5 | NBT50 |
NBT50-SK10C-200 | 1.75-10.0 | SK10C | 33-41 | 200 | 27.5 | NBT50 |
NBT50-SK10C-225 | 1.75-10.0 | SK10C | 33-41 | 225 | 27.5 | NBT50 |
NBT50-SK10C-250 | 1.75-10.0 | SK10C | 33-41 | 250 | 27.5 | NBT50 |
NBT50-SK10C-300 | 1.75-10.0 | SK10C | 33-41 | 300 | 27.5 | NBT50 |
NBT50-SK13C-105 | 2.75-13.0 | SK13C | 39-51 | 105 | 33 | NBT50 |
NBT50-SK13C-135 | 2.75-13.0 | SK13C | 39-51 | 135 | 33 | NBT50 |
NBT50-SK13C-165 | 2.75-13.0 | SK13C | 39-51 | 165 | 33 | NBT50 |
NBT50-SK13C-200 | 2.75-13.0 | SK13C | 39-51 | 200 | 33 | NBT50 |
NBT50-SK13C-250 | 2.75-13.0 | SK13C | 39-51 | 250 | 33 | NBT50 |
NBT50-SK13C-300 | 2.75-13.0 | SK13C | 39-51 | 300 | 33 | NBT50 |
NBT50-SK16C-105 | 2.75-16.0 | SK16C | 45-57 | 105 | 40 | NBT50 |
NBT50-SK16C-135 | 2.75-16.0 | SK16C | 45-57 | 135 | 40 | NBT50 |
NBT50-SK16C-165 | 2.75-16.0 | SK16C | 45-57 | 165 | 40 | NBT50 |
NBT50-SK16C-200 | 2.75-16.0 | SK16C | 45-57 | 200 | 40 | NBT50 |
NBT50-SK16C-250 | 2.75-16.0 | SK16C | 45-57 | 250 | 40 | NBT50 |
NBT50-SK16C-300 | 2.75-16.0 | SK16C | 45-57 | 300 | 40 | NBT50 |
NBT50-SK20C-105 | 3.5-20.0 | SK20C | 47-63 | 105 | 48.5 | NBT50 |
NBT50-SK20C-135 | 3.5-20.0 | SK20C | 47-63 | 135 | 48.5 | NBT50 |
NBT50-SK20C-165 | 3.5-20.0 | SK20C | 47-63 | 165 | 48.5 | NBT50 |
NBT50-SK20C-200 | 3.5-20.0 | SK20C | 47-63 | 200 | 48.5 | NBT50 |
NBT50-SK20C-250 | 3.5-20.0 | SK20C | 47-63 | 250 | 48.5 | NBT50 |
NBT50-SK20C-300 | 3.5-20.0 | SK20C | 47-63 | 300 | 48.5 | NBT50 |
NBT50-SK25C-105 | 7.5-25.4 | SK25C | 60-70 | 105 | 55 | NBT50 |
NBT50-SK25C-135 | 7.5-25.4 | SK25C | 60-70 | 135 | 55 | NBT50 |
NBT50-SK25C-165 | 7.5-25.4 | SK25C | 60-70 | 165 | 55 | NBT50 |
NBT50-SK25C-200 | 7.5-25.4 | SK25C | 60-70 | 200 | 55 | NBT50 |
NBT50-SK25C-250 | 7.5-25.4 | SK25C | 60-70 | 250 | 55 | NBT50 |
NBT50-SK25C-300 | 7.5-25.4 | SK25C | 60-70 | 300 | 55 | NBT50 |
NBT50-SK6C-105 | 0.7-6.0 | SK6C | 26-31 | 105 | 19.5 | NBT50 |
NBT50-SK6C-135 | 0.7-6.0 | SK6C | 26-31 | 135 | 19.5 | NBT50 |
NBT50-SK6C-165 | 0.7-6.0 | SK6C | 26-31 | 165 | 19.5 | NBT50 |
NBT50-SK6C-200 | 0.7-6.0 | SK6C | 26-31 | 200 | 19.5 | NBT50 |
NBT50-SZF10C-105 | 1.75-10.0 | SZF10C | 30-50 | 105 | 27.5 | NBT50 |
NBT50-SZF10C-165 | 1.75-10.0 | SZF10C | 30-50 | 165 | 27.5 | NBT50 |
NBT50-SZF16C-105 | 2.75-16.0 | SZF16C | 45-65 | 105 | 40 | NBT50 |
NBT50-SZF16C-165 | 2.75-16.0 | SZF16C | 45-65 | 165 | 40 | NBT50 |
NBT50-SZF25C-135 | 7.5-25.4 | SZF25C | 55-85 | 135 | 55 | NBT50 |
NBT50-SZF25C-165 | 7.5-25.4 | SZF25C | 55-85 | 165 | 55 | NBT50 |
NBT50-SZF6C-105 | 0.7-6.0 | SZF6C | 21-35 | 105 | 19.5 | NBT50 |
NBT50-SZF6C-165 | 0.7-6.0 | SZF6C | 21-35 | 165 | 19.5 | NBT50 |
NIT40-SK10C-120 | 1.75-10.0 | SK10C | 30-50 | 120 | 27.5 | NIT40 |
NIT40-SK10C-150 | 1.75-10.0 | SK10C | 30-50 | 150 | 27.5 | NIT40 |
NIT40-SK10C-180 | 1.75-10.0 | SK10C | 30-50 | 180 | 27.5 | NIT40 |
NIT40-SK10C-60 | 1.75-10.0 | SK10C | 30-50 | 60 | 27.5 | NIT40 |
NIT40-SK10C-90 | 1.75-10.0 | SK10C | 30-50 | 90 | 27.5 | NIT40 |
NIT40-SK13C-120 | 2.75-13.0 | SK13C | 31-65 | 120 | 33 | NIT40 |
NIT40-SK13C-150 | 2.75-13.0 | SK13C | 31-65 | 150 | 33 | NIT40 |
NIT40-SK13C-180 | 2.75-13.0 | SK13C | 31-65 | 180 | 33 | NIT40 |
NIT40-SK13C-60 | 2.75-13.0 | SK13C | 31-65 | 60 | 33 | NIT40 |
NIT40-SK13C-90 | 2.75-13.0 | SK13C | 31-65 | 90 | 33 | NIT40 |
NIT40-SK16C-120 | 2.75-16.0 | SK16C | 45-70 | 120 | 40 | NIT40 |
NIT40-SK16C-150 | 2.75-16.0 | SK16C | 45-70 | 150 | 40 | NIT40 |
NIT40-SK16C-180 | 2.75-16.0 | SK16C | 45-70 | 180 | 40 | NIT40 |
NIT40-SK16C-60 | 2.75-16.0 | SK16C | 50-65 | 60 | 40 | NIT40 |
NIT40-SK16C-90 | 2.75-16.0 | SK16C | 45-70 | 90 | 40 | NIT40 |
NIT40-SK20C-120 | 3.5-20.0 | SK20C | 47-80 | 120 | 48.5 | NIT40 |
NIT40-SK20C-90 | 3.5-20.0 | SK20C | 47-80 | 90 | 48.5 | NIT40 |
NIT40-SK25C-120 | 7.5-25.4 | SK25C | 55-75 | 120 | 55 | NIT40 |
NIT40-SK25C-90 | 7.5-25.4 | SK25C | 55-75 | 90 | 55 | NIT40 |
NIT40-SK6C-120 | 0.7-6.0 | SK6C | 21-35 | 120 | 19.5 | NIT40 |
NIT40-SK6C-150 | 0.7-6.0 | SK6C | 21-35 | 150 | 19.5 | NIT40 |
NIT40-SK6C-60 | 0.7-6.0 | SK6C | 21-35 | 60 | 19.5 | NIT40 |
NIT40-SK6C-90 | 0.7-6.0 | SK6C | 21-35 | 90 | 19.5 | NIT40 |
NIT50-SK10C-105 | 1.75-10.0 | SK10C | 30-50 | 105 | 27.5 | NIT50 |
NIT50-SK10C-135 | 1.75-10.0 | SK10C | 30-50 | 135 | 27.5 | NIT50 |
NIT50-SK10C-165 | 1.75-10.0 | SK10C | 30-50 | 165 | 27.5 | NIT50 |
NIT50-SK10C-200 | 1.75-10.0 | SK10C | 30-50 | 200 | 27.5 | NIT50 |
NIT50-SK13C-105 | 2.75-13.0 | SK13C | 31-65 | 105 | 33 | NIT50 |
NIT50-SK13C-135 | 2.75-13.0 | SK13C | 31-65 | 135 | 33 | NIT50 |
NIT50-SK13C-165 | 2.75-13.0 | SK13C | 31-65 | 165 | 33 | NIT50 |
NIT50-SK13C-200 | 2.75-13.0 | SK13C | 31-65 | 200 | 33 | NIT50 |
NIT50-SK16C-105 | 2.75-16.0 | SK16C | 40-70 | 105 | 40 | NIT50 |
NIT50-SK16C-135 | 2.75-16.0 | SK16C | 40-70 | 135 | 40 | NIT50 |
NIT50-SK16C-165 | 2.75-16.0 | SK16C | 40-70 | 165 | 40 | NIT50 |
NIT50-SK16C-200 | 2.75-16.0 | SK16C | 40-70 | 200 | 40 | NIT50 |
NIT50-SK20C-105 | 3.5-20.0 | SK20C | 47-80 | 105 | 48.5 | NIT50 |
NIT50-SK20C-135 | 3.5-20.0 | SK20C | 47-80 | 135 | 48.5 | NIT50 |
NIT50-SK20C-165 | 3.5-20.0 | SK20C | 47-80 | 165 | 48.5 | NIT50 |
NIT50-SK20C-200 | 3.5-20.0 | SK20C | 47-80 | 200 | 48.5 | NIT50 |
NIT50-SK25C-105 | 7.5-25.4 | SK25C | 50-85 | 105 | 55 | NIT50 |
NIT50-SK25C-135 | 7.5-25.4 | SK25C | 50-85 | 135 | 55 | NIT50 |
NIT50-SK25C-165 | 7.5-25.4 | SK25C | 50-85 | 165 | 55 | NIT50 |
NIT50-SK25C-200 | 7.5-25.4 | SK25C | 50-85 | 200 | 55 | NIT50 |
NIT50-SK6C-105 | 0.7-6.0 | SK6C | 21-35 | 105 | 19.5 | NIT50 |
NIT50-SK6C-135 | 0.7-6.0 | SK6C | 21-35 | 135 | 19.5 | NIT40 |
NIT50-SK6C-165 | 0.7-6.0 | SK6C | 21-35 | 165 | 19.5 | NIT50 |
NIT50-SK6C-200 | 0.7-6.0 | SK6C | 21-35 | 200 | 19.5 | NIT50 |
